B-1B Lancer: A Game-Changer as New External Pylons Drastically Expand Missile Capacity

The Bone Gets More Bite: A Crucial Upgrade for the B-1B Lancer

In the world of military aviation, few aircraft hold the unique status and imposing presence of the B-1B Lancer. Affectionately known as the "Bone," this swing-wing strategic bomber has been a cornerstone of American air power for decades. While its sleek design and supersonic capabilities have always been impressive, the B-1B has faced evolving threats and mission requirements that demanded continuous adaptation. Now, a long-anticipated upgrade is finally coming to fruition: the addition of new external pylons, which promises to drastically expand its missile carriage potential and redefine its role in modern conflict.

This isn't just a minor tweak; it's a strategic move that addresses critical limitations and significantly enhances the B-1B's lethality. For years, discussions have swirled around how to maximize the Bone's payload capacity, especially concerning larger, more advanced standoff weapons. The answer, it seems, lies on its wings.

From Nuclear Striker to Conventional Powerhouse: The B-1B's Evolution

To truly appreciate the significance of these new pylons, it's helpful to understand the B-1B's journey. Originally conceived in the Cold War era as a low-altitude, high-speed nuclear penetrator, the Lancer entered service in the mid-1980s. Its primary mission was to deliver nuclear weapons, utilizing its variable-sweep wings to achieve both high-speed dash capabilities and efficient long-range cruising.

However, with the end of the Cold War and the changing geopolitical landscape, the B-1B underwent a dramatic transformation. It was converted from a nuclear bomber to an exclusively conventional platform in the mid-1990s. This transition saw it shed its nuclear mission and embrace a new role as a precision conventional strike aircraft, capable of carrying a massive payload of bombs and missiles internally.

The B-1B quickly proved its worth in conventional conflicts, from Operation Desert Fox in Iraq to operations in Afghanistan and Libya. Its ability to loiter for extended periods, deliver large volumes of ordnance, and operate at relatively high speeds made it an invaluable asset for close air support, interdiction, and strategic bombing missions. Its internal bomb bays, segmented into three large bays, were designed to carry a variety of conventional munitions, including JDAMs (Joint Direct Attack Munitions) and CBU (Cluster Bomb Units).

Despite its impressive track record, a bottleneck emerged as newer, longer-range standoff weapons became critical to modern warfare. Missiles like the AGM-158 JASSM (Joint Air-to-Surface Standoff Missile) and its extended-range variant, JASSM-ER, along with the AGM-158C LRASM (Long Range Anti-Ship Missile), proved too large or too numerous for the existing internal bays to carry efficiently in large quantities. While the B-1B could carry some of these, its full potential was limited by the internal volume, not necessarily its lift capacity.

The Need for External Carriage: Unlocking Hidden Potential

The challenge was clear: how to leverage the B-1B's immense structural strength and engine power to carry more, especially the crucial standoff weapons that allow bombers to strike targets from hundreds of miles away, reducing risk to the aircraft and crew. The answer, envisioned decades ago but only now being fully realized, was external pylons.

Historically, external carriage of weapons on the B-1B was a feature removed during its conventional conversion, primarily to reduce radar cross-section and potentially for structural weight considerations related to its nuclear role. Reintroducing external pylons wasn't a simple bolt-on job. It required significant engineering, structural modifications, and rigorous testing to ensure the aircraft could safely and effectively carry additional weight and aerodynamic drag without compromising performance or flight safety.

The motivation behind this persistent pursuit of external carriage is multifaceted:

• Increased Payload: The most obvious benefit. External pylons mean more weapons per sortie.
• Standoff Capability: Critical in contested environments, the ability to launch more JASSM-ERs or LRASMs from beyond enemy air defenses is paramount.
• Flexibility: It allows for a more diverse mix of weapons, tailoring the payload to specific mission requirements without compromising internal bay capacity for other munitions.
• Future Weapons Integration: As new, larger, or more specialized weapons (including potential hypersonic missiles) are developed, external carriage offers a natural pathway for integration without requiring a complete redesign of the internal bays.

The New External Pylons: A Detailed Look at the "Bone" Upgrade

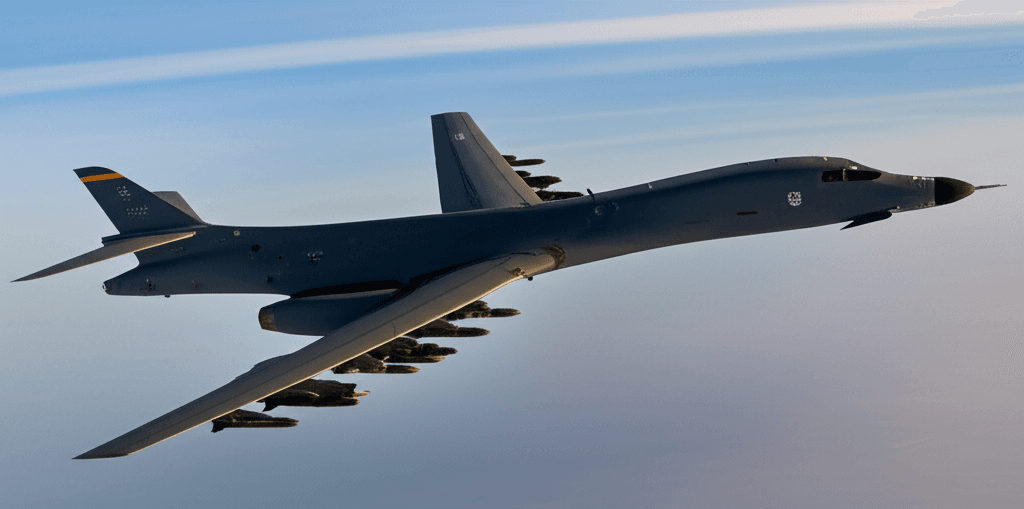

The updated B-1B Lancer will feature six new external hardpoints, three under each wing, located near the aircraft's center line. Each of these pylons is designed to carry a significant load, effectively transforming the bomber's capabilities. While exact figures can vary based on specific weapon types and configurations, early indications suggest a dramatic increase in missile carriage:

• JASSM-ER Capacity: The B-1B can currently carry up to 24 JASSM-ERs internally (eight per bay). With the addition of the six external pylons, each potentially carrying two JASSM-ERs (depending on the specific pylon design and carriage rack), the total capacity could jump to as many as 36 missiles. This represents a 50% increase, which is a game-changer for long-range strike missions.
• LRASM Potential: Similarly, for the Long Range Anti-Ship Missile (LRASM), which is crucial for naval warfare scenarios, the external pylons will significantly boost the number of missiles that can be carried. This directly enhances the B-1B's role as a potent anti-surface warfare platform.
• Future Adaptability: Beyond current weapons, these pylons are engineered with an eye towards the future. They are likely designed to accommodate emerging weapon systems, including larger, heavier munitions or even potentially smaller hypersonic weapons, once those mature and enter service. This forward compatibility ensures the B-1B remains relevant as military technology evolves.

The physical integration involves not just the pylons themselves, but also the necessary wiring, data links, and software updates to the aircraft's mission computers and weapon management systems. This ensures seamless communication between the aircraft and its externally carried ordnance, allowing for proper targeting, release, and flight control. This level of technological integration speaks to the complexity of modern military technology and its continuous evolution.

The Air Force has been pushing this modification for some time, recognizing its critical nature. The program has involved extensive testing, including ground fit checks, captive-carry flights (flying with weapons attached but not released), and eventually live fire tests to validate the full operational envelope.

Strategic Implications: Reshaping Air Power in a Contested World

The implications of this B-1B upgrade are profound, both operationally and strategically:

Enhanced Standoff Capabilities

In an era of advanced integrated air defense systems (IADS), the ability to strike targets from significant distances is paramount. The B-1B, already a formidable platform for standoff attacks, will become even more effective. A single B-1B sortie will be able to engage more targets or cover a larger area with precision-guided munitions, reducing the number of sorties required and the exposure of other assets.

Greater Deterrence

A bomber force capable of delivering a larger volume of precision standoff weapons sends a clear message to potential adversaries. It enhances the credibility of deterrence by demonstrating a robust capacity for long-range, high-volume strikes, even against well-defended targets. This is especially relevant in contexts where anti-access/area denial (A2/AD) strategies are employed by potential rivals.

Extending the B-1B's Operational Life

The B-1B fleet, while aging, has undergone numerous upgrades to its avionics, defensive systems, and structural components. The addition of external pylons is arguably one of the most impactful, effectively giving the bomber a new lease on life. This capability boost ensures the B-1B remains a viable and critical asset for at least another decade, if not longer, bridging the gap until the next-generation B-21 Raider fully enters service and achieves operational maturity.

Complementing the Bomber Fleet

The U.S. Air Force operates a "triad" of bombers: the B-52 Stratofortress, the B-2 Spirit, and the B-1B Lancer. Each has unique strengths. The B-52 is a workhorse, capable of massive conventional payloads and cruise missile carriage. The B-2 is the premier stealth platform for penetrating highly contested airspace. The B-1B, with its speed and impressive internal payload, now gains a significant external punch. This upgrade enhances the overall flexibility and strategic depth of the entire bomber force, allowing commanders more options for tailoring forces to specific threats.

Challenges and the Path Forward

While the benefits are clear, implementing such a significant modification is not without its challenges:

• Cost and Budget: Major modifications, especially involving structural changes and system integration, are expensive. Ensuring consistent funding amidst competing priorities is crucial.
• Timeline: Developing, testing, and fielding these upgrades across the entire B-1B fleet takes time. Production and installation schedules must be managed carefully to minimize downtime for the operational aircraft.
• Maintenance and Logistics: New systems mean new maintenance requirements, spare parts, and training for ground crews. The logistical chain must be robust enough to support the enhanced fleet.
• Training: Aircrews will need updated training on how to operate the aircraft with external stores, including flight characteristics, weapon release procedures, and emergency protocols.

Despite these hurdles, the momentum for this upgrade has been building for years, driven by operational necessity. The Air Force leadership understands the value of maximizing the capability of existing platforms while the next-generation B-21 Raider program progresses. As General Timothy Ray, former commander of Air Force Global Strike Command, once articulated:

"The B-1 is a magnificent airplane. It’s got a great amount of payload capacity, great speed, and it’s very capable. It’s a very important part of our bomber force for a long time to come."

This sentiment underscores the long-term vision for the B-1B, where even as the B-21 takes center stage, the Bone will continue to play a vital, complementary role, especially in scenarios demanding high volume conventional strike capability.

The Future of the B-1B in a Evolving Global Landscape

The strategic bomber fleet is undergoing its most significant transformation in decades. The B-52 continues its incredible journey with new engines and upgrades, the B-2 maintains its stealth edge, and the B-21 Raider is on the horizon as the future backbone of the long-range strike force. In this dynamic landscape, the B-1B's external pylon upgrade positions it as a critical bridge. It provides an immediate and substantial boost to long-range strike capabilities, ensuring the U.S. maintains its decisive edge in air power as it transitions to a more advanced fleet.

The "Bone" isn't just surviving; it's adapting and becoming more lethal. This upgrade is a testament to the continuous innovation required to maintain military superiority and respond effectively to emerging global threats. It reaffirms the B-1B Lancer's enduring legacy as a highly capable and adaptable asset in the nation's defense arsenal.
